# Configuration

For the latest configuration options please check [Action Editor](/nobe-omniscope/action-editor.md)

***

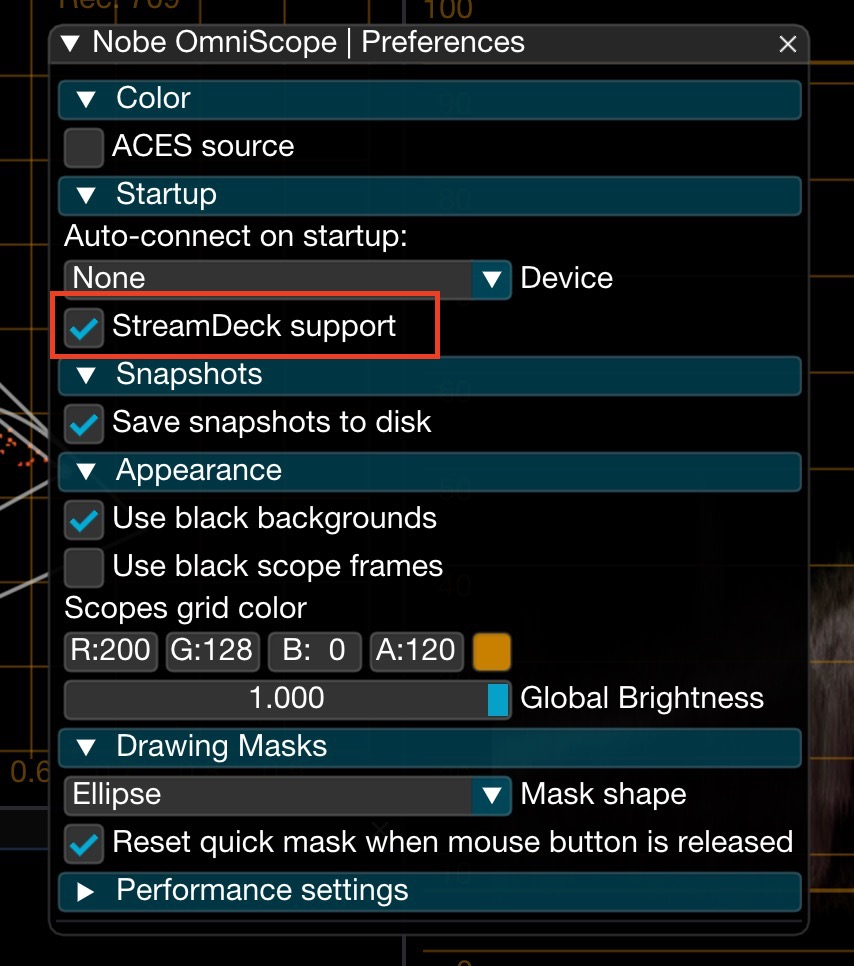

StreamDeck support needs to be enabled in the Options / Preferences window first:

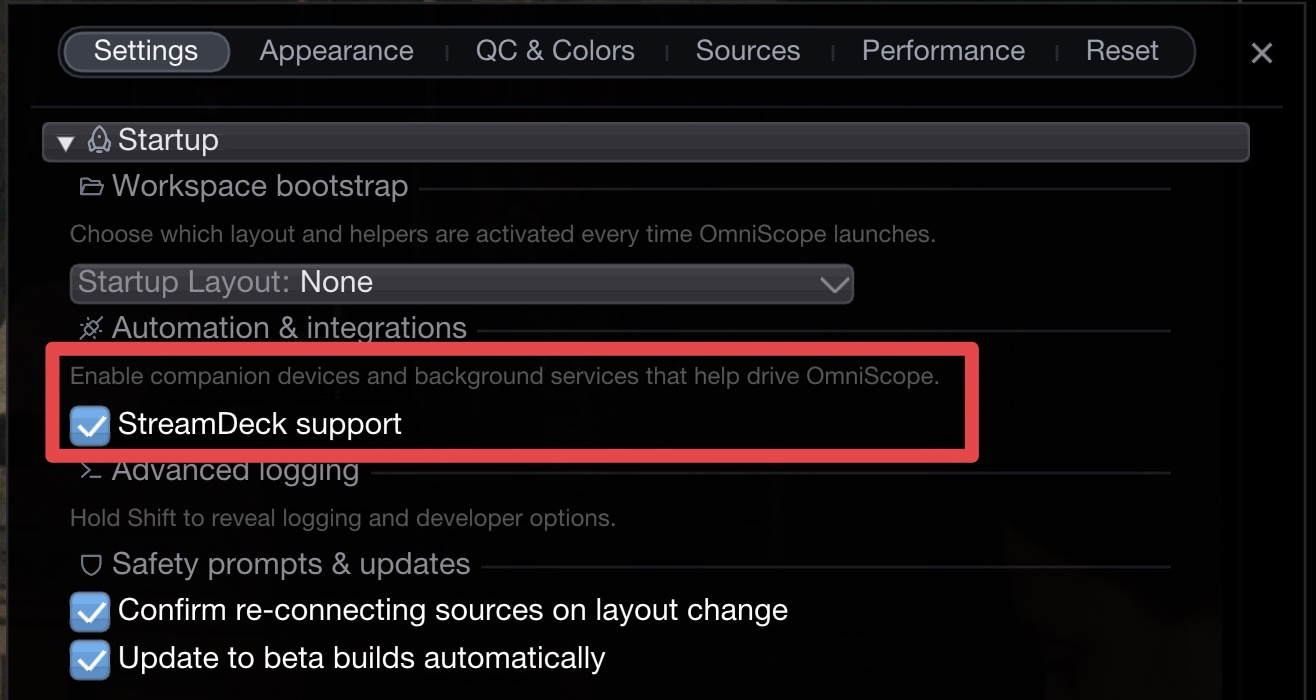

<figure><img src="/files/VD1cP82M8Q8ve2kR0LJo" alt=""><figcaption><p>Enable StreamDeck support in Preferences</p></figcaption></figure>

There are two parts to the StreamDeck setup:

1. Configure the shared OmniScope connection once with the **OmniScope Connection** action in Stream Deck.
2. Configure the per-button **channel** on each **Nobe OmniScope** action.

To configure the shared connection, drag the **OmniScope Connection** action onto any key, enter the OmniScope IP / Host and Port, then click **Save Shared Connection**.

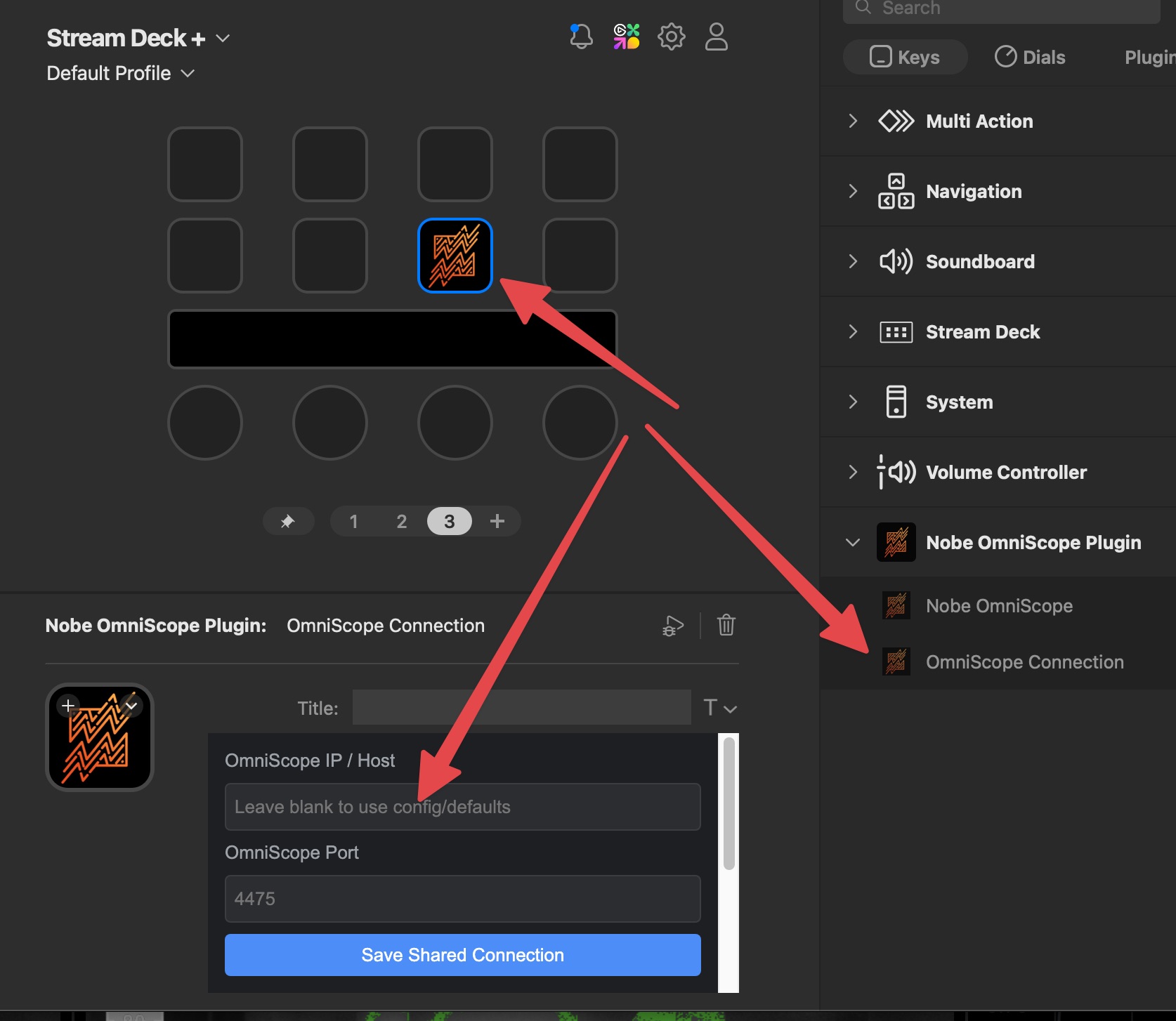

<figure><img src="/files/BMMrDJ4SmnxnIOKj5A1X" alt=""><figcaption><p>Use the OmniScope Connection action to set the shared IP / Host and Port for all OmniScope actions</p></figcaption></figure>

{% hint style="info" %}
You only need to configure the IP / Host and Port once. Regular **Nobe OmniScope** actions only need the **channel** value.
{% endhint %}

If OmniScope runs on the same machine as Stream Deck, you can leave the host blank to use the local config / defaults.

Once the connection is configured, we can access the StreamDeck submenu in various places in OmniScope to create and manage mappings.

<figure><img src="/files/PjfflwiD4dw2vur3UE0J" alt=""><figcaption><p>StreamDeck mapping in the Action Editor</p></figcaption></figure>

### Stream Deck+ Dials

Stream Deck+ dials (rotary encoders) are configured the same way as buttons — assign a **channel** number to each **Nobe OmniScope** dial action in the Stream Deck app. Many actions respond to dial rotation and press with additional behaviour such as continuous zoom, cycling through layouts, or adjusting blend amounts. See [Available Actions → Stream Deck+ Dial Support](/nobe-omniscope/streamdeck/available-actions.md#stream-deck-dial-support) for the full list.

All the existing StreamDeck mappings can be seen in Options / StreamDeck Mappings… menu:

![](/files/-MG3PLha1-ClVeuH6nuA)

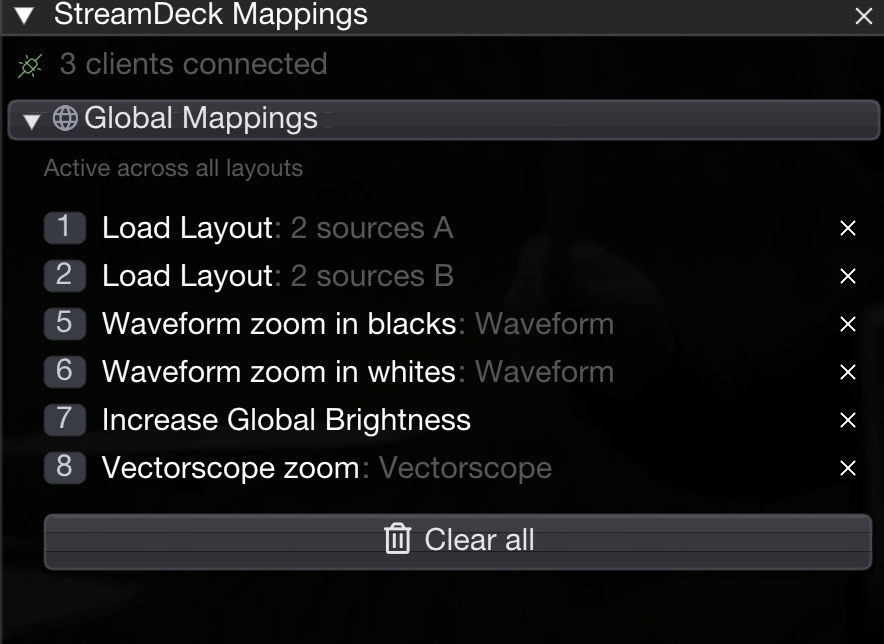

<figure><img src="/files/sC5Ikc7qq7tyfyxlAsEd" alt=""><figcaption><p>StreamDeck Mappings window</p></figcaption></figure>


---
