Multiple Input Sources
How to connect more than one input source at a time
Nobe OmniScope allows you to connect more than one active source at a time.

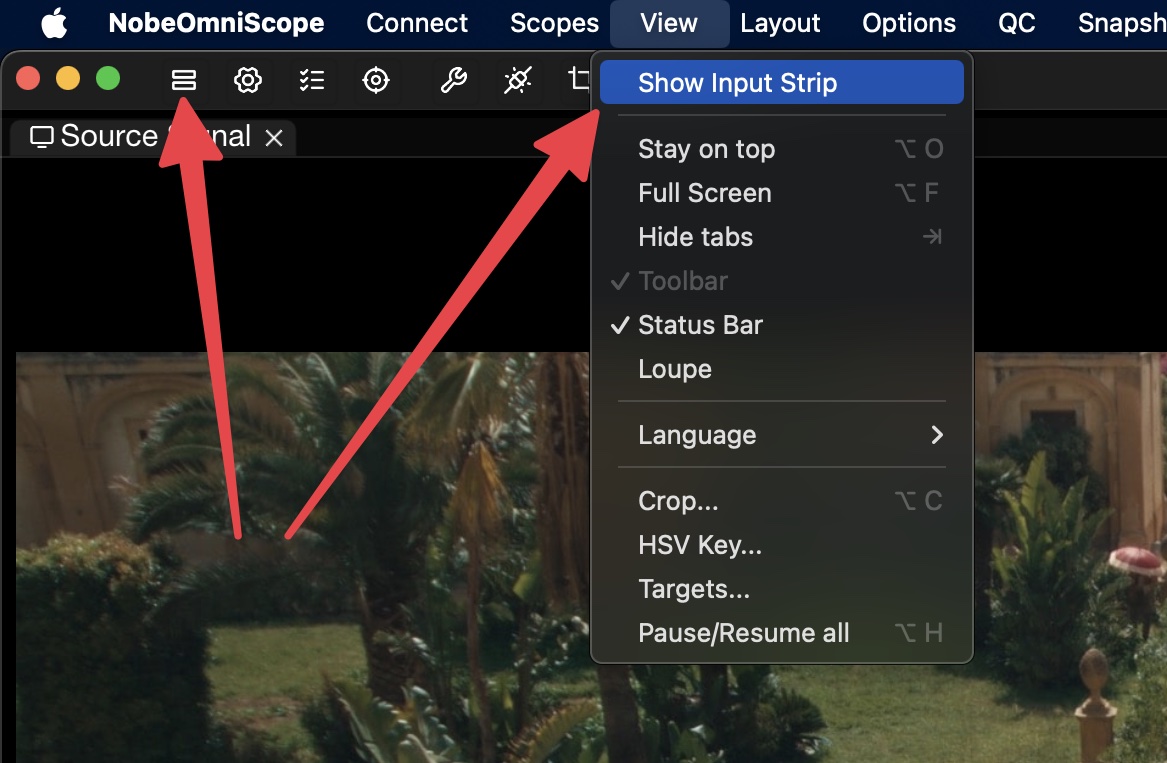

The easiest way to do this is to enable the Input Strip from the View menu:

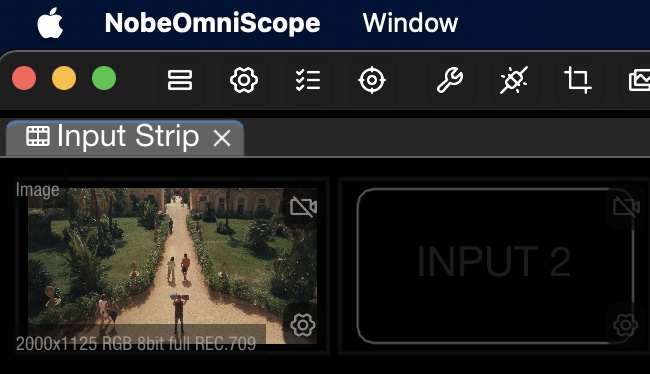

Once visible, you can dock the Input Strip into your workspace. It works in both horizontal and vertical orientation:
The Input Strip provides the following controls:
Disconnect button (top-right corner) — disconnects that source
Input Source Settings (lower-right corner) — opens settings for the selected source

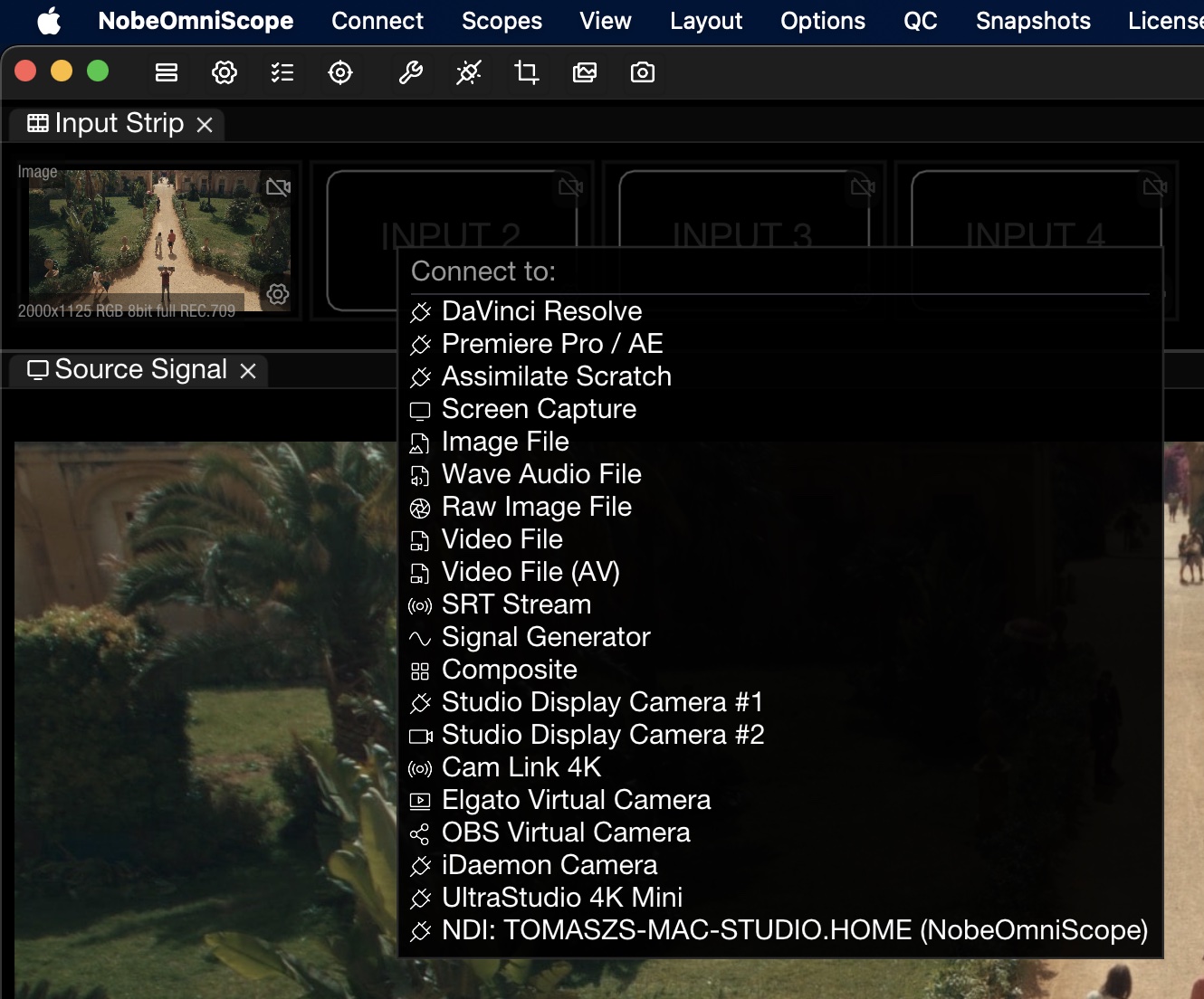

To connect an additional source, right-click an empty slot in the Input Strip and select the input type from the context menu:

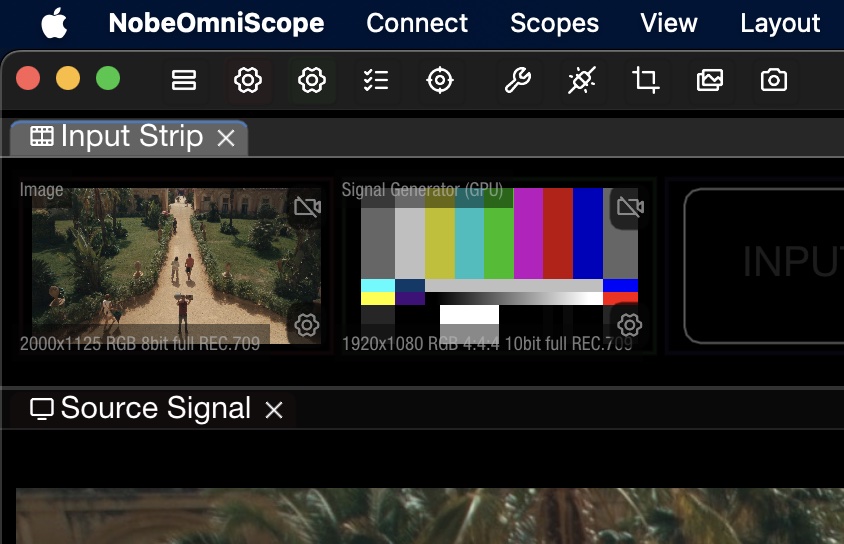

Connect a new source from the Input Strip Once added, the new source appears as a thumbnail in the Input Strip:

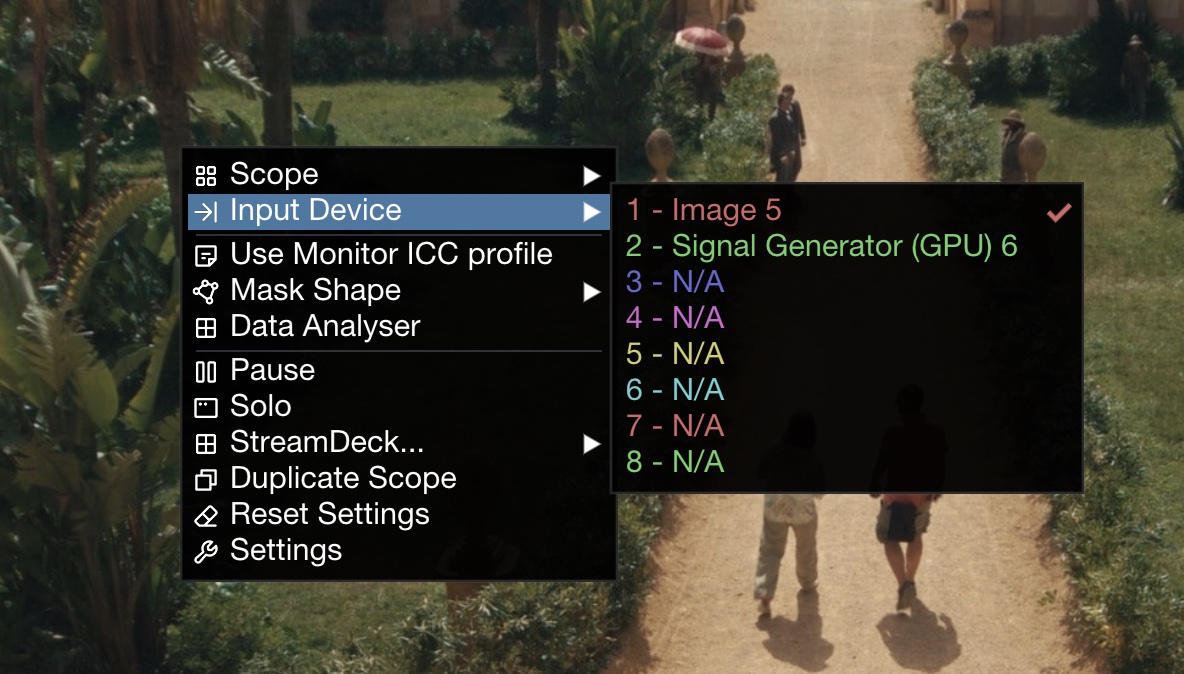

Multiple active input sources To assign a source to a specific scope, right-click the scope view and go to Input Device to select from the list of available sources:
Select the active input for a scope Input sources are color coded — when you hover over a thumbnail in the Input Strip, a colored frame highlights all scopes assigned to that source.
You can configure sources to reconnect automatically on startup. Right-click a connected source thumbnail and select Auto-connect:
Auto-connect setting in the Input Strip For more details, see Auto-connect.
