Assimilate Scratch

OmniScope automatically discovers the Assimilate Scratch plugin when Scratch is running. The Assimilate Scratch source will appear in the Connect dialog without manual configuration.

The SDI plugin for Assimilate Scratch is installed automatically on Windows. On macOS, select Options / Install plugins…

Install individual plugins

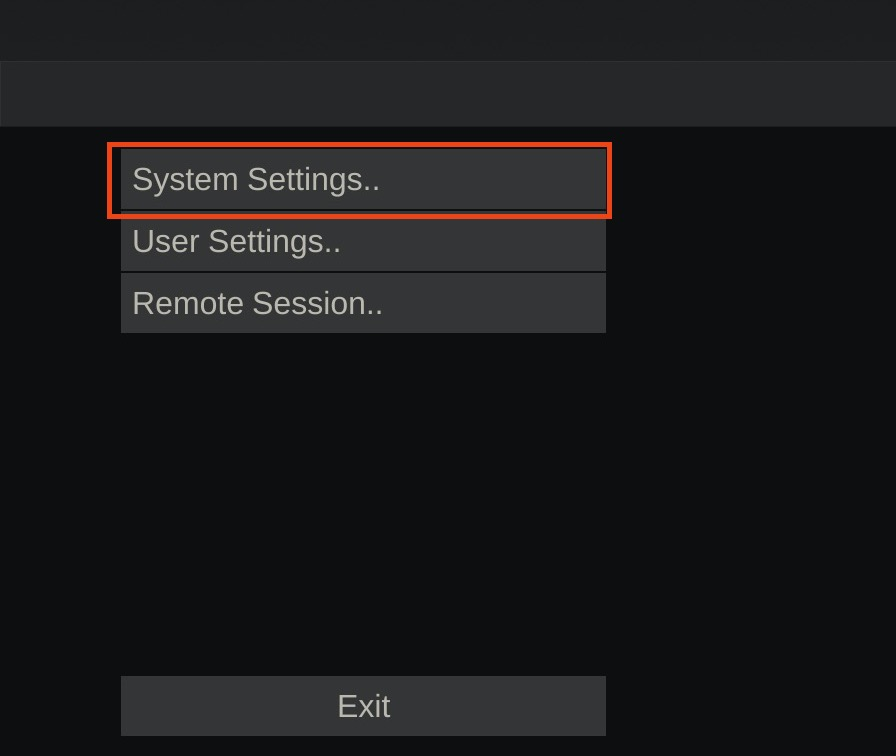

Now the SDI plugin needs to be configured in Scratch. On the main page select System Settings…

Then “Configure..” in the SDI Settings section:

And finally select Nobe OmniScope plugin in the list and set the options as follows:

Make sure the Channel 1 is enabled! Otherwise the signal will remain black in OmniScope.

Once the setup is done you can now connect from OmniScope using Assimilate Scratch source.
