# DeckLink 8K Pro monitoring

How to monitor on the same PC with DeckLink 8K Pro

Here's a quick setup that allows you to monitor a signal with OmniScope on the same PC as DaVinci Resolve.

### Desktop Video setup

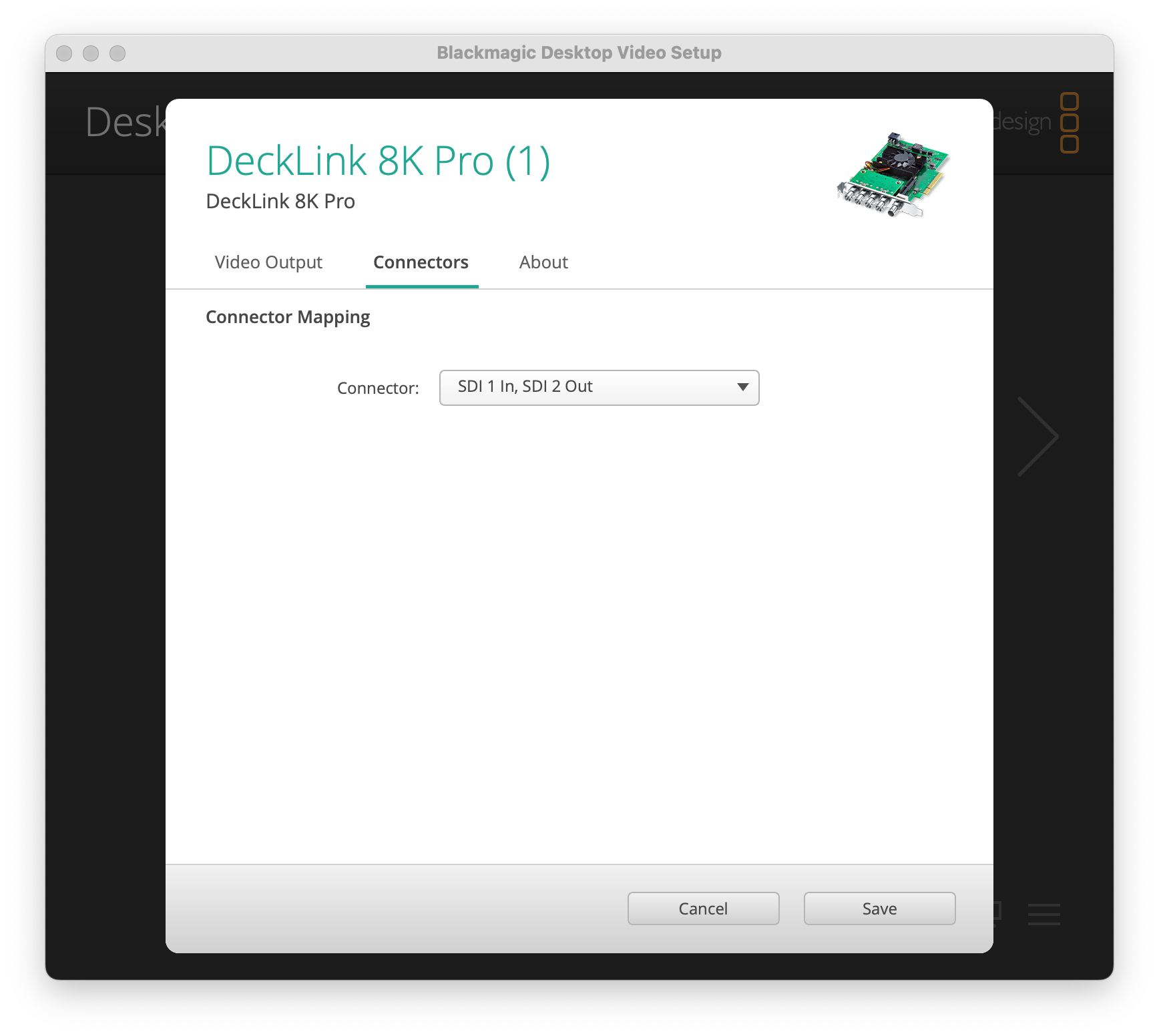

Make sure to set the connectors to SDI 1 in, SDI 2 Out:

![](https://565437294-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MFqn5MuayPgQPMZ9pwf%2Fuploads%2F6puiSF1ilgloVVVK1vCi%2FCleanShot%202022-06-02%20at%2012.21.17%402x.png?alt=media\&token=4ad42f95-8454-450c-baac-c80310398945)

### DaVinci Resolve configuration

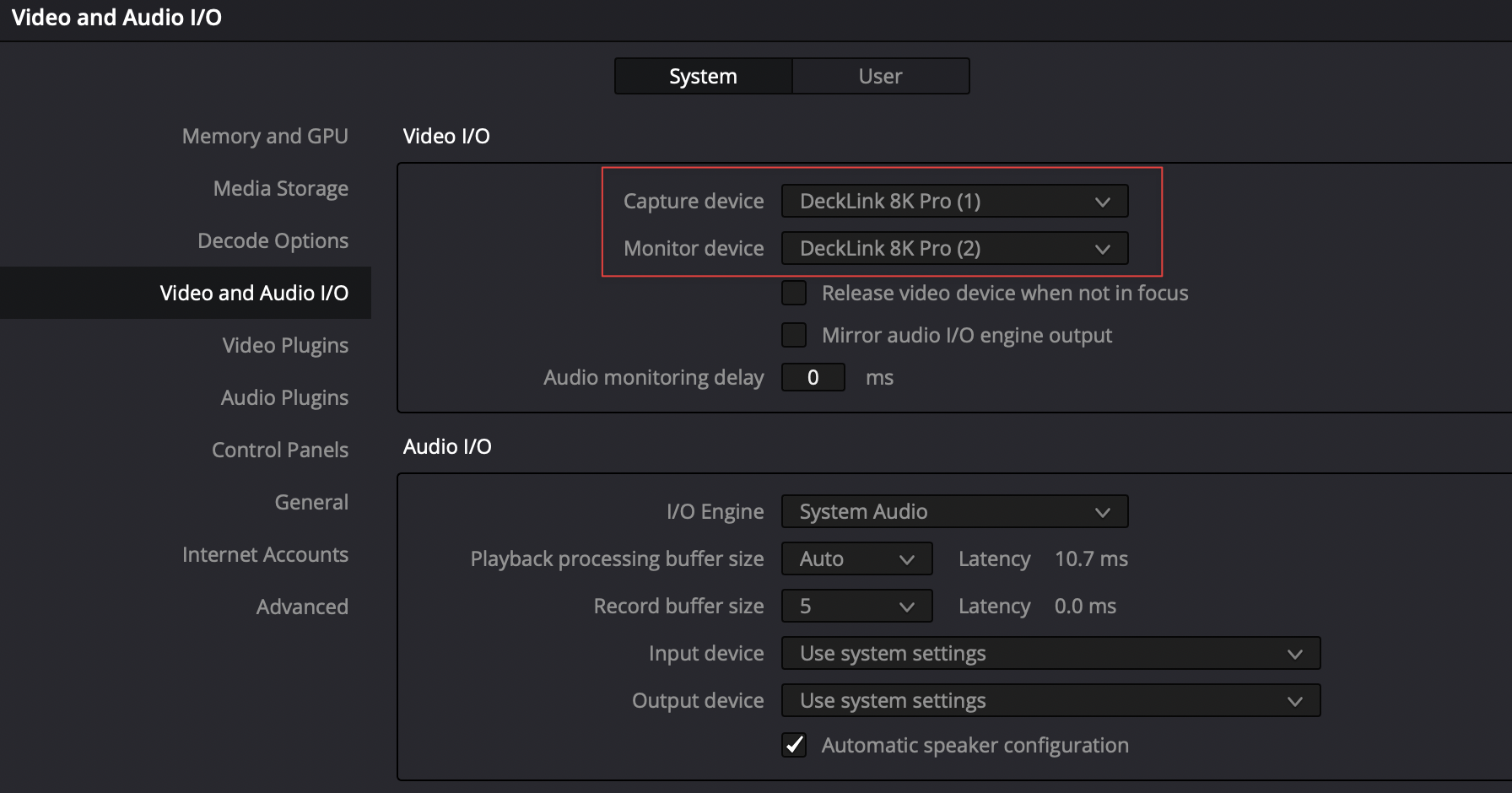

Set the Monitor device in Video and Audio I/O section in DaVinci Resolve to DeckLink 8K Pro (2):

![](https://565437294-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MFqn5MuayPgQPMZ9pwf%2Fuploads%2FV88Dda8Bms8QBg7NflGO%2FCleanShot%202022-06-02%20at%2011.47.26%402x.png?alt=media\&token=45deb1d3-3afc-4ee2-b18e-d827b7099f71)

### Looping back the ports

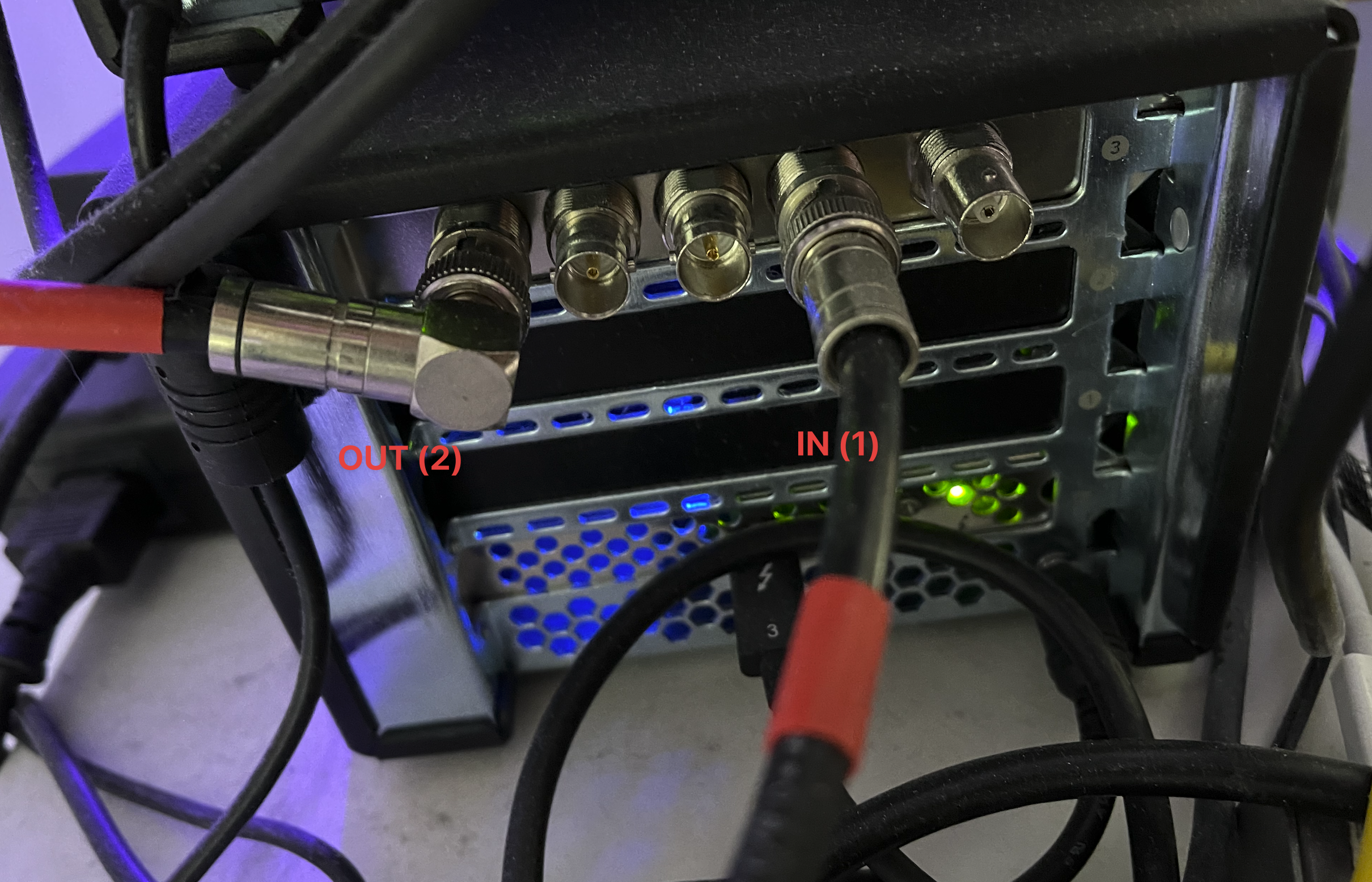

Here's how you should loop back the ports with the SDI cable:

![](https://565437294-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MFqn5MuayPgQPMZ9pwf%2Fuploads%2FvRxFLgzZh2fzZW4nDWiV%2FCleanShot%202022-06-02%20at%2011.50.27%402x.png?alt=media\&token=4ba8d22e-346a-4640-bb9e-63c0b6c47aa0)

### OmniScope configuration

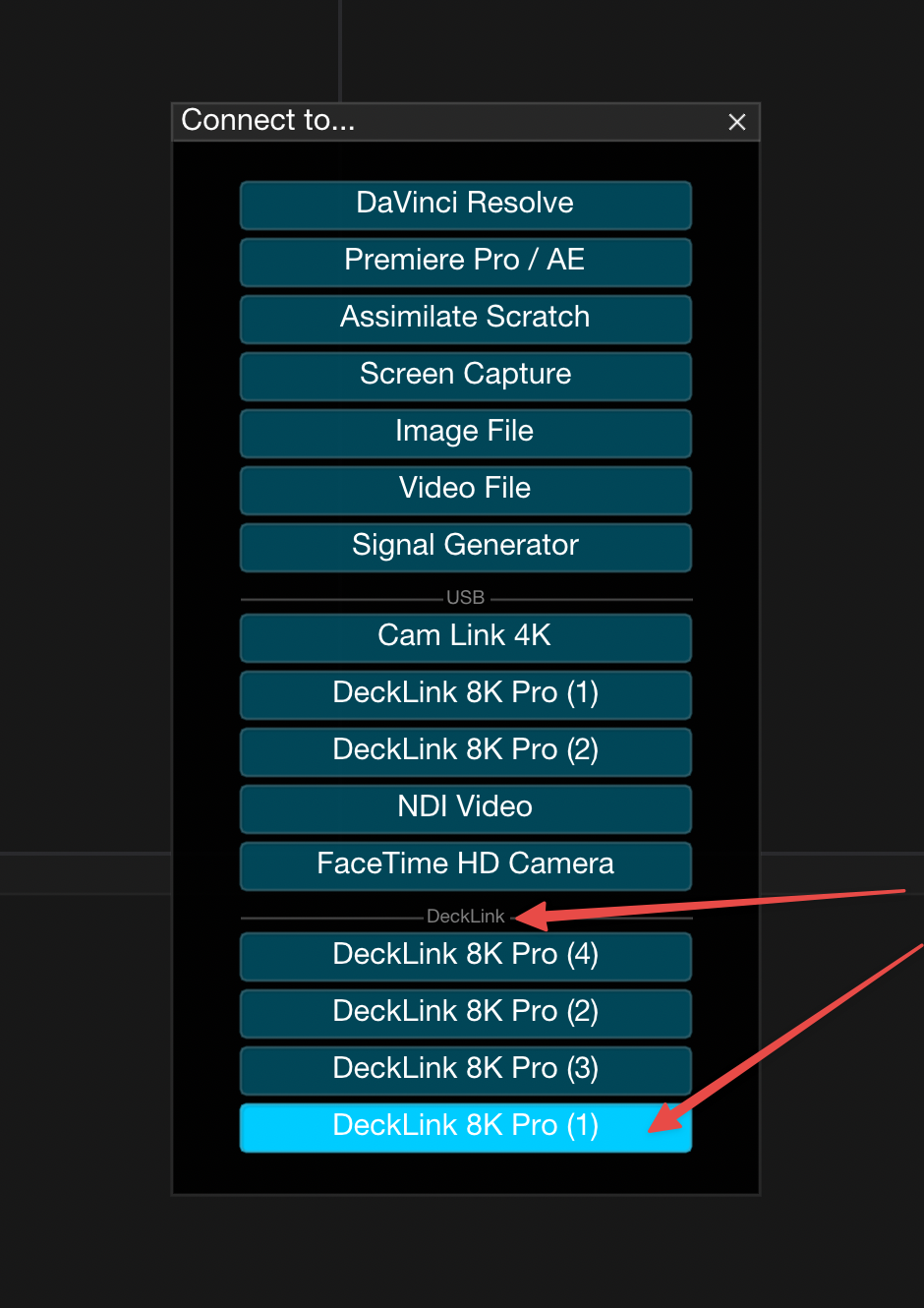

Then simply select DeckLink 8K Pro (1) as your input device in Connect To dialog in OmniScope. Make sure you are using DeckLink driver, not the USB driver:

![](https://565437294-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MFqn5MuayPgQPMZ9pwf%2Fuploads%2F0zh5F8Wak5XQHXJvgEDR%2FCleanShot%202022-06-02%20at%2011.48.06%402x.png?alt=media\&token=5dc2971e-40ee-4f20-aee9-5524d947acfe)
