Monitoring on the same PC

Using OmniScope on the same computer as your NLE/Suite

OmniScope can be used on the same system as your DaVinci Resolve installation without using the OFX plugin but rather through SDI/HDMI signal.

This can be achieved by looping the SDI/HDMI signal back to the same computer so that the signal is visible to Nobe OmniScope.

To make it work you will need 2 I/O cards (or 1 multi I/O card - see below):

1. Output card - to send the signal out of DaVinci Resolve

2. Input card - to receive the signal back in Nobe OmniScope

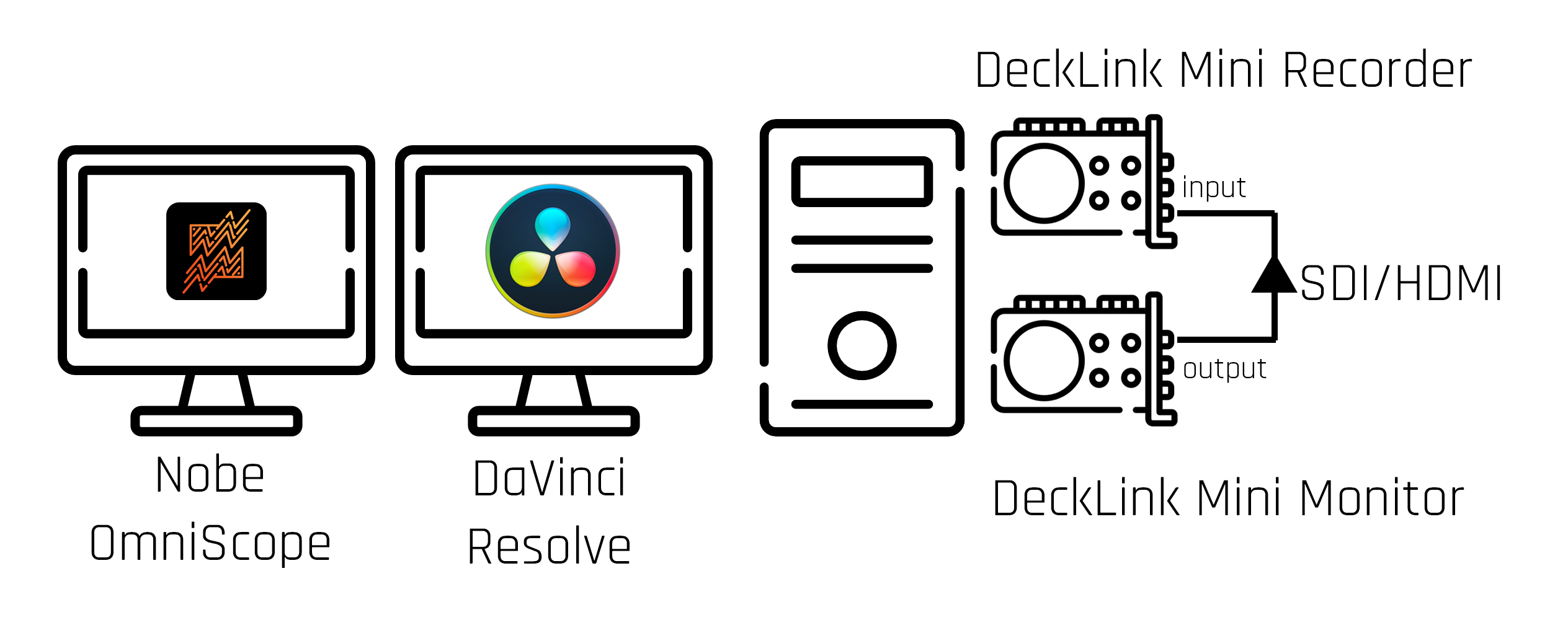

Both cards should be looped with SDI or HDMI cable - see the diagram below:

Looping the SDI signal with DeckLink PCIe card

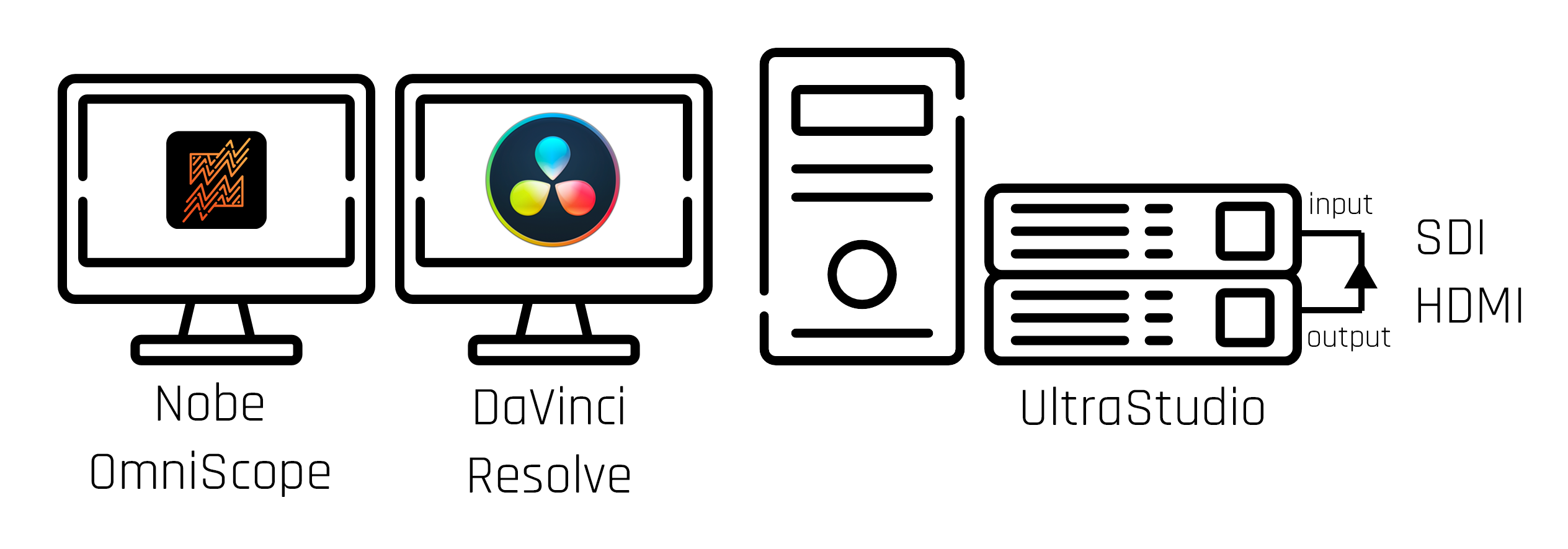

Here's the diagram with UltraStudio ThunderBolt 3 card(s):

Looping the SDI signal with UltraStudio ThunderBolt card(s)

Supported Hardware

Nobe OmniScope supports all the compatible DeckLink and UltraStudio devices.
